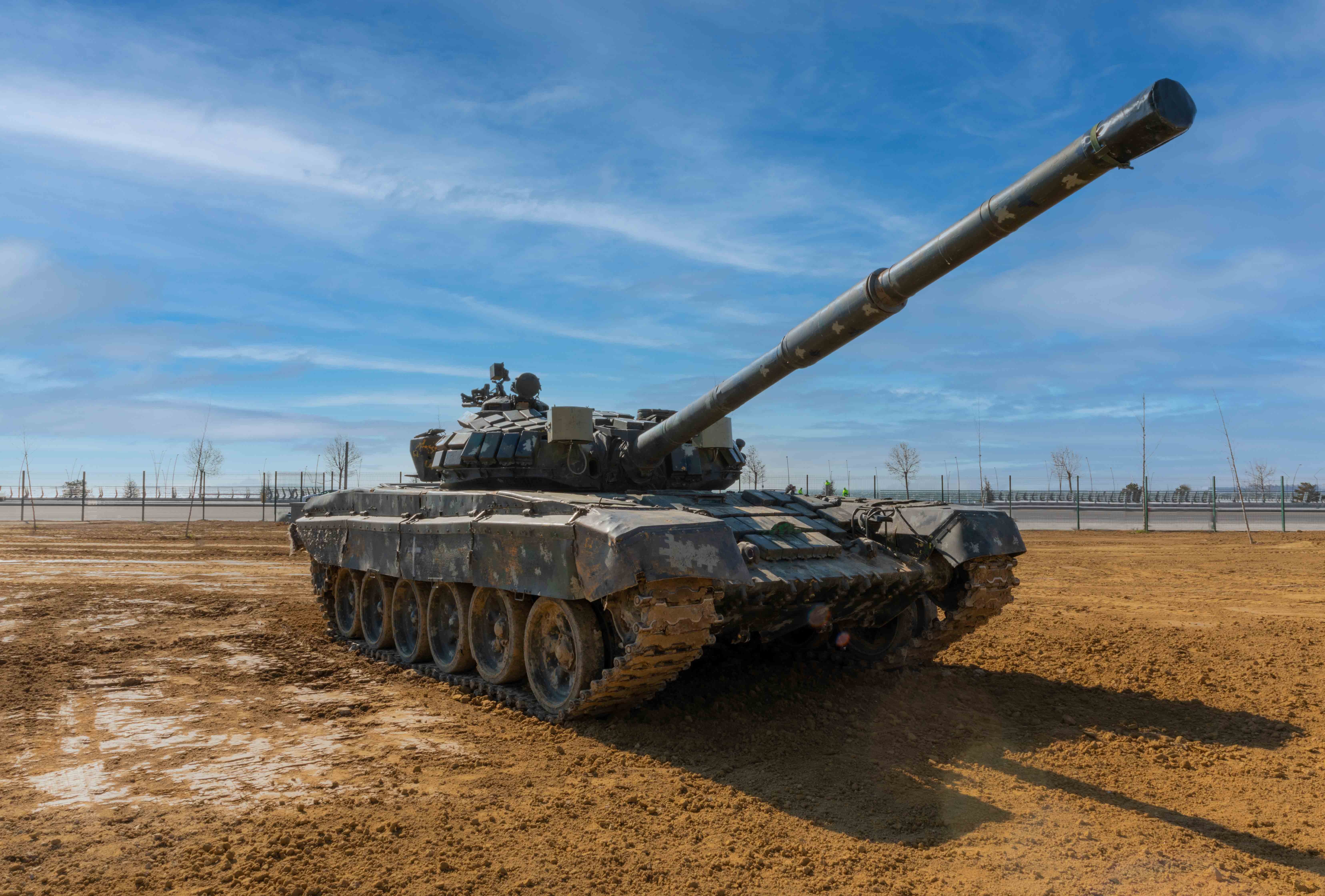

T-72 tanks: A, AK, AV, B variants (79 pieces)
Mass: 41.5 tonnes
Armour: Steel and composite. Turret 550mm RHA T-72M1
Speed: 60 km/h
Power/weight: 18.8 hp/tonne
Main armament: 125 mm 2A46M/2A46M-5 smoothbore gun
Secondary armament: 7.62 mm PKT coax. Machine gun, 12.7 mm NSVT machine gun
Length: 9.53 m
Width: 3.59 m
Height: 2.23 m
Crew: three

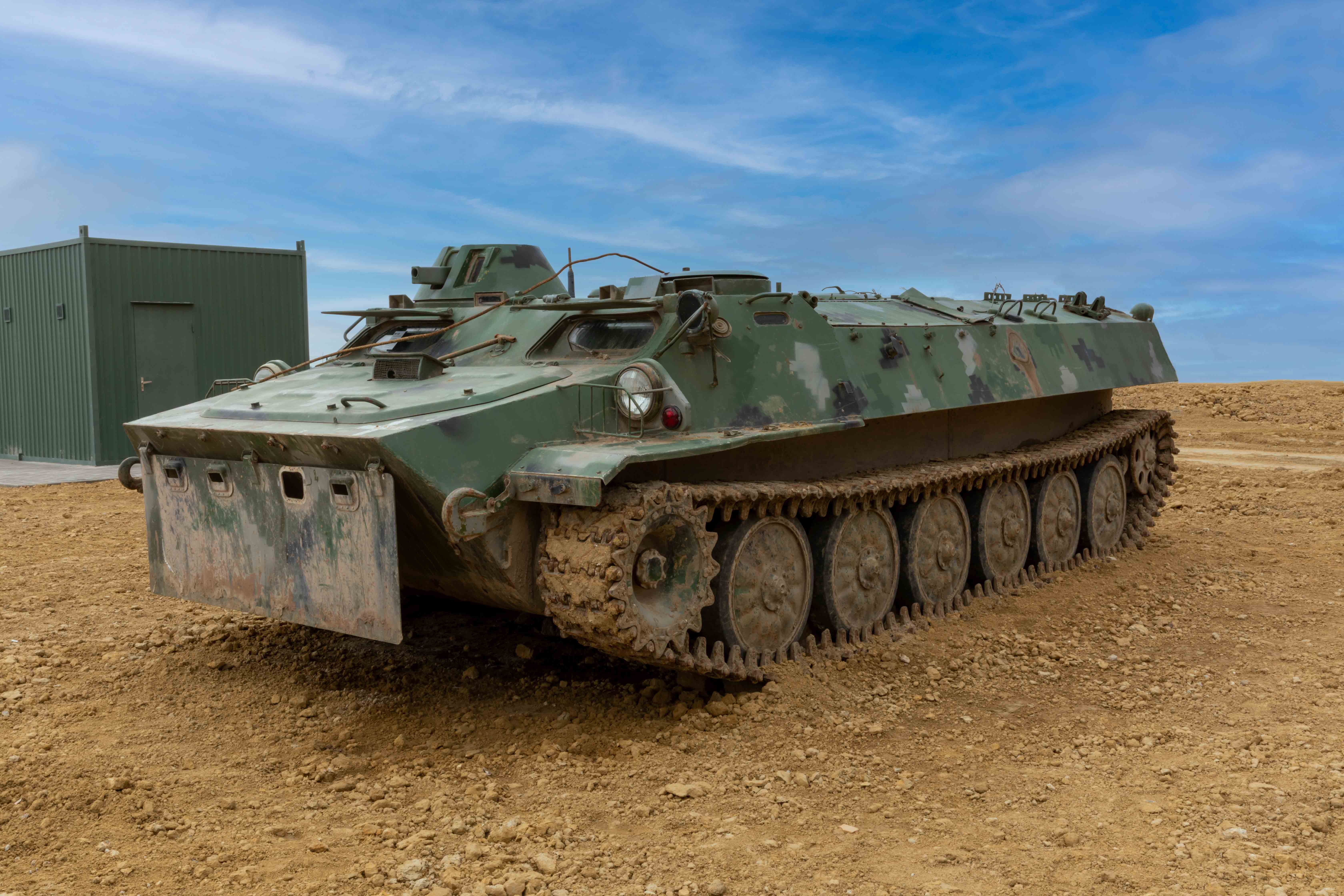

MT-LB armoured fighting vehicle
Mass: 11.9 tons
Armour: 14 mm
Speed: 61 km/h (road), 30 km/h (off-road), 6 km/h (in the water)
Power/weight: 20 hp/tonne
Main armament: 7.62 mm PKT machine gun
Length: 6.45 m
Width: 2.86 m
Height: 1.86 m
Crew: 2 (+ 11 passengers)

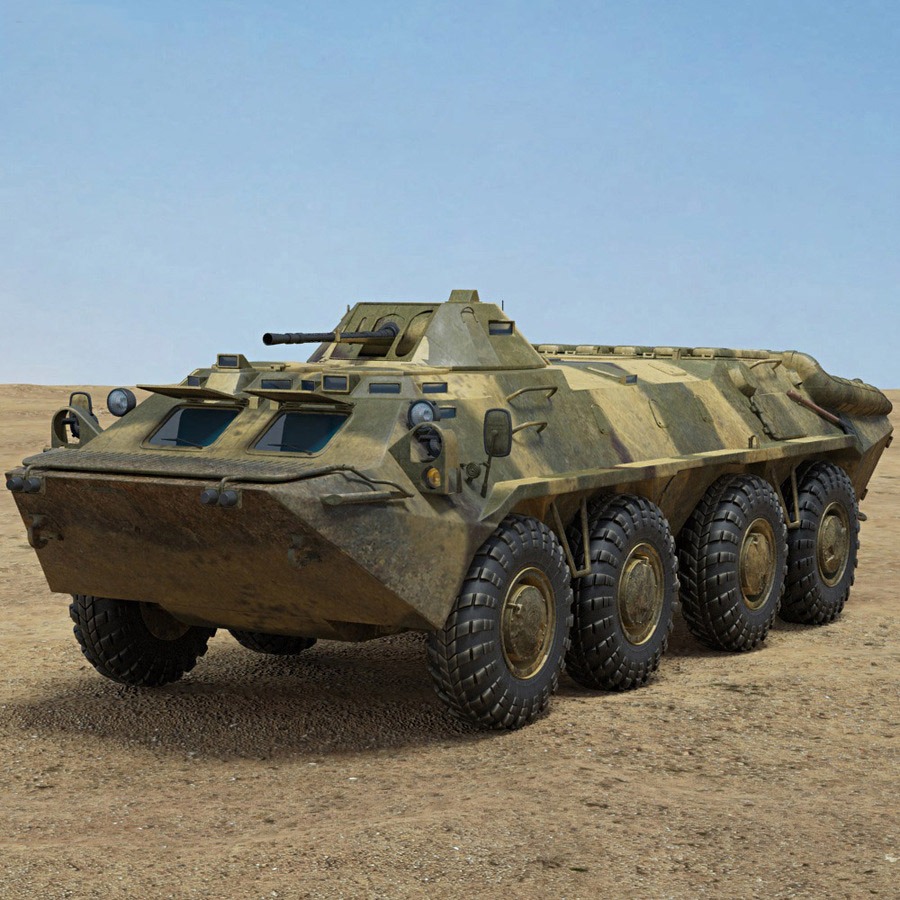

BTR-70 armoured personnel carrier
Crew: 10 people (3+7 passengers)
Length: 7.53 m
Width: 2.80 m
Height: 2.26 m
Mass: 11.5 tonnes
Armour: 9 mm (front) 7 mm (sides)
Engine: gasoline ZMZ-4905 120 hp
Power: 88.2 kW (x2)
Speed: 80 km/h (land), 9 km/h (swim)
Operational range: 400–600 km
Main armament: 14.5 mm KPVT machine gun
Secondary armament: 7.62 mm PKT machine gun

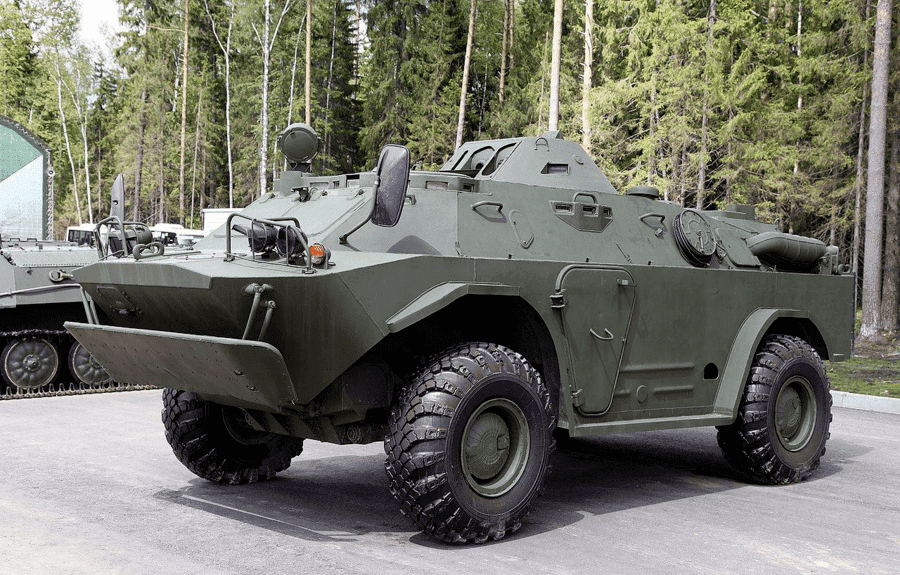

BRDM-2 amphibious armoured scout car
Length: 5.75 m
Length of barrel: 3 m
Width: 2.35 m
Height: 2.39 m
Clearance: 0.33 m
Configuration: 4x4 (8x8)
Armour: 14 mm welded steel
Engine: GAZ-41 (ZMZ-41) V8 gasoline
Power: 140 horsepower
Maximum speed: 100 km/h
Operational range: 750 km
Suspension: leaf springs with hydraulic shock absorbers

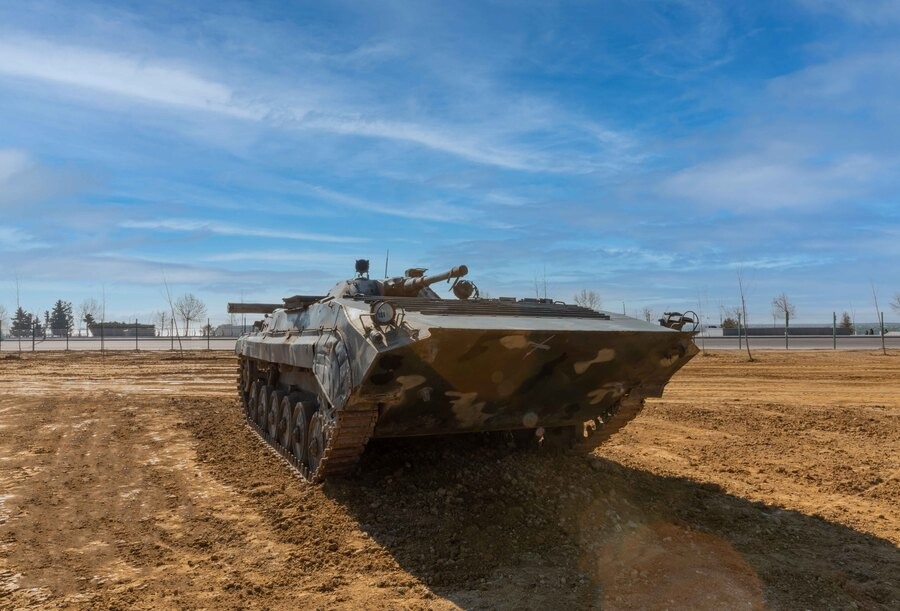

BMP-1 infantry fighting vehicle
Mass: 13.2 tonnes
Armour: 6.33 mm
Speed: 65 km/h (road), 45 km/h (offroad), 7-8 km/h (water)
Power/weight: 22.7 hp/tonne (17 kW/tonne)
Main armament: 73 mm 2A28 ‘Grom’ semi-automatic gun, 9M14 Malyutka’ anti-tank guided missile
Secondary armament: 7.62 PKT machine gun
Length: 6.735 m
Width: 2.94 m
Height: 2.068 m
Crew: 3 (commander, driver and gunner) + 8 passengers

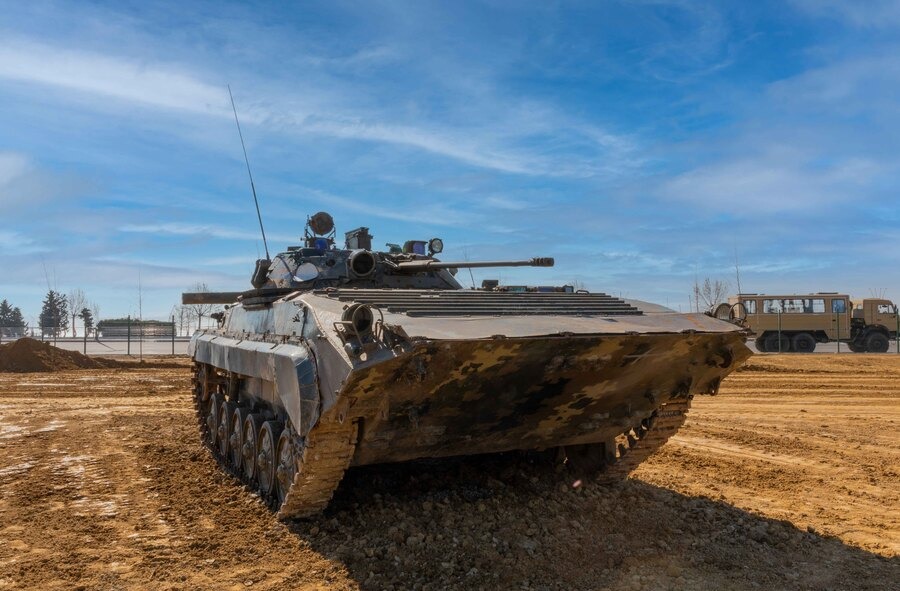

BMP-2 infantry fighting vehicle
Mass: 14.3 tonne
Armour: 33 mm
Speed: 65 km/h (road), 45 km/h (offroad), 7 km/h (water)
Power/weight: 21 hp/tonne
Main armament: 30 mm autocannon (2A42), 9M113 ‘Konkurs’ anti-tank guided missile
Secondary armament: 7.62 mm PKTM machine gun
Length: 6.72 m
Width: 3.15 m
Height: 2.45 m
Crew: 3 (+7 passengers)

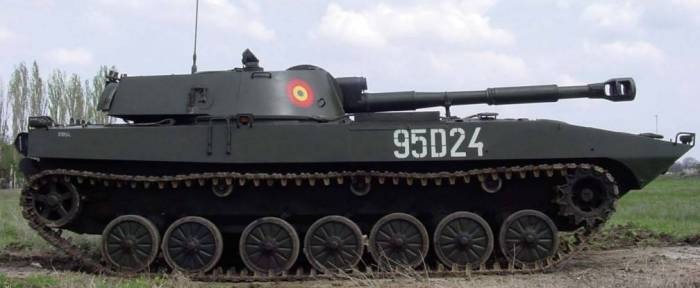

‘Akatsiya’ self-propelled artillery
Mass: 27.5 tonne
Length: 6.97 m
Width: 3.25 m
Height: 2.65 m
Crew: 4
Elevation: -4 to +60°
Traverse: 360°

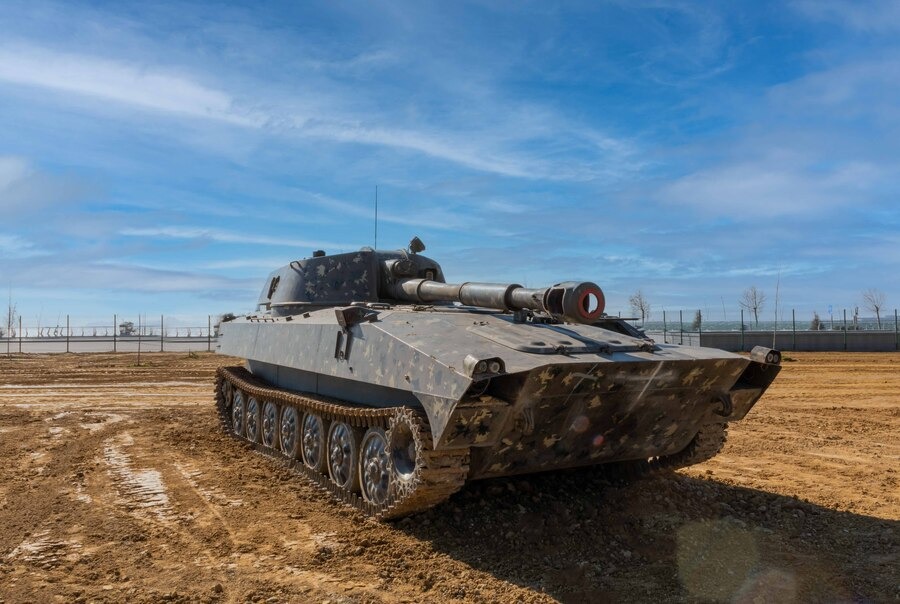

‘Gvozdika’ self-propelled artillery
Main armament: 122 mm 2A31 howitzer
Calibre: 122 mm
Elevation: -3 to +70°
Traverse: 360°
Maximum firing range: 15.2 km
Broadside ammunition: 40
Crew: 4
Length: 7260 mm
Width: 2850 mm
Height: 2725 mm
Length of barrel: 2500 mm
Clearance: 400
Armour: steel, 15 mm
Engine: YMZ-238H
Speed: 61.5 km/hour
Operational range: 800 km

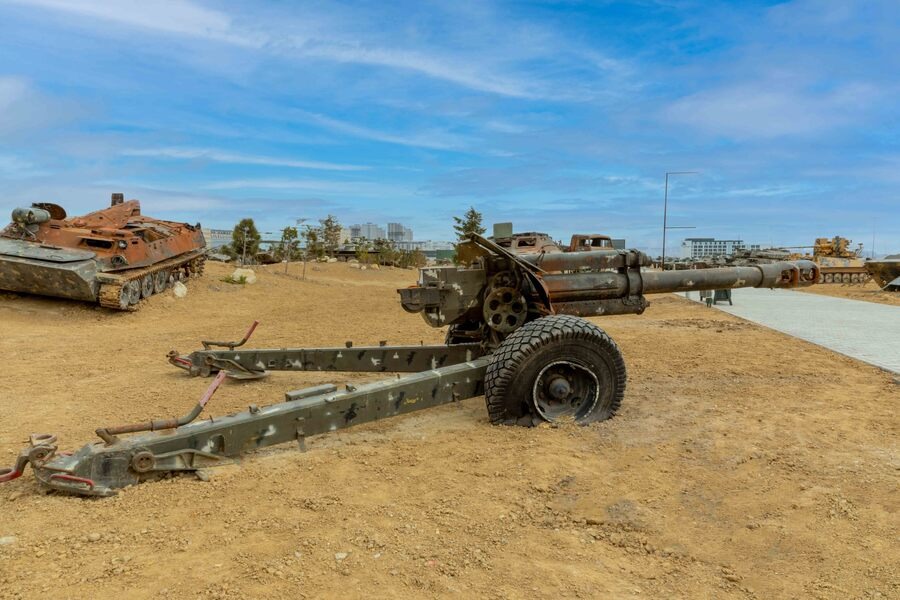

‘D-1’ howitzer
Mass: 3,600 kg
Separate loading charge: 3.640 kg
Length: 3,527 mm/23,1 calibre
Barrel calibre: 152.4 mm
Elevation: -3° to 63.3°
Rate of fire: 3-4 rounds/min
Maximum firing range: 12.4 km

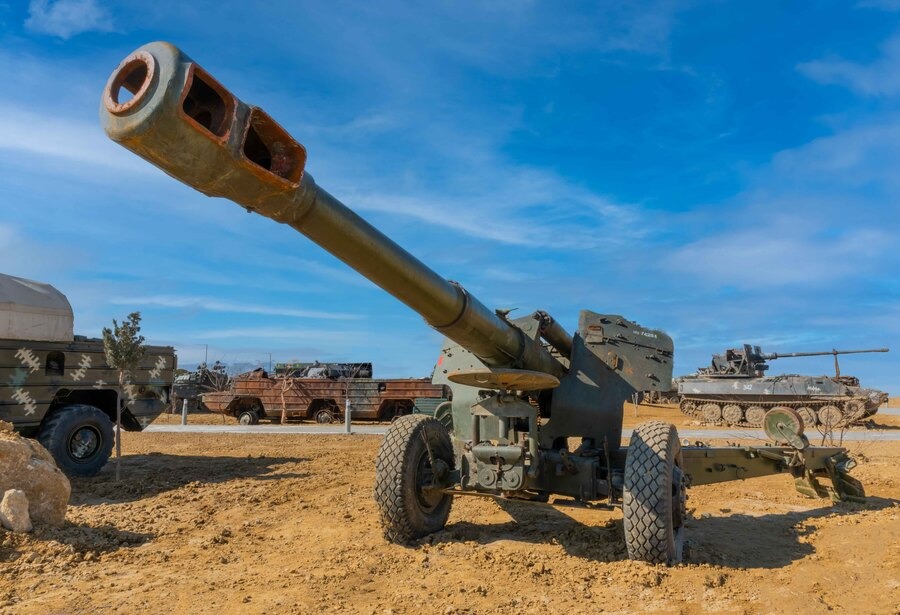

‘D-20’ howitzer
Length (on standby): 12300 mm
Ammunition:
- HE-Fragmentation OF-32
- DPICM
- Incendiary
- Expendable jammer
- Chemical
- Flechette
- Guided
Firing range: 17.4 km

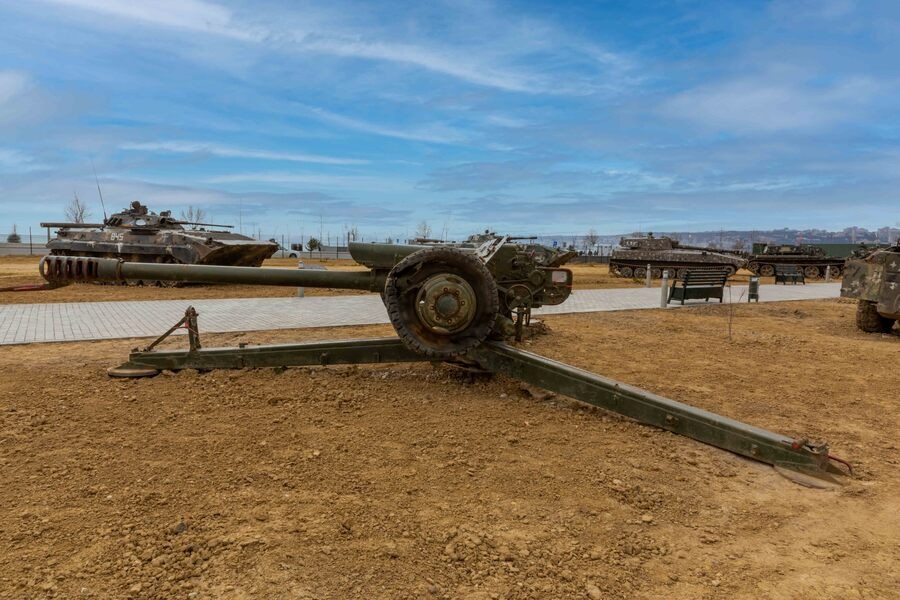

‘D-30’ howitzer
Calibre: 122 mm
Weight: 3200 kg
Length: 5400 mm
Barrel length: 4660 mm
Width:1900 mm
Height: 1600 mm
Crew: 6
Elevation: -7° to +70°
Traverse: 360°
HE-Frag muzzle velocity: 690 m/s
Hollow charge shell muzzle velocity: 740 m/s
Minimum firing range: 7-8 km
Firing range: 15.4 km
HE-Frag weight: 21 kg
Hollow charge shell weight: 14 kg
Rate of fire: 6-8 rounds/minute
Mean error: 10 m

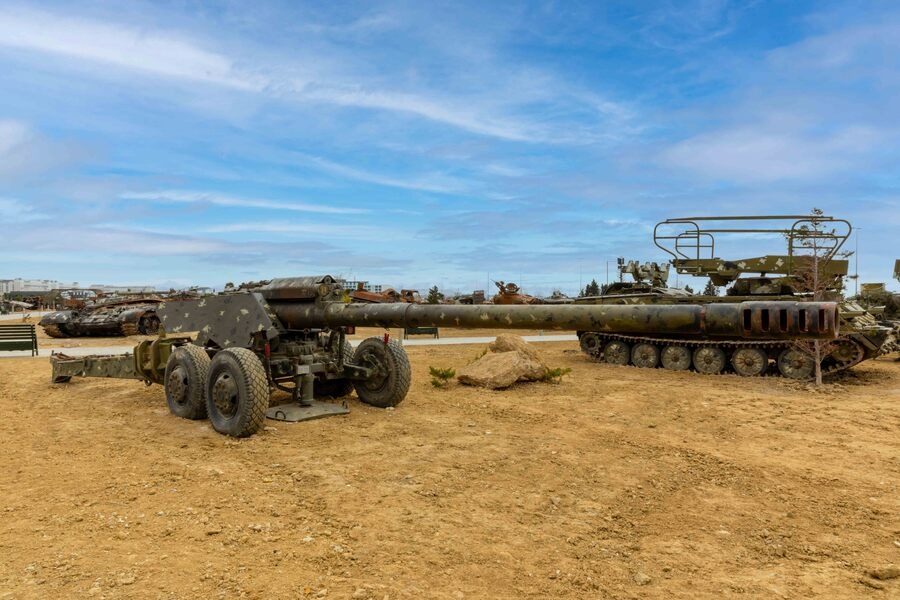

2A36 ‘Giatsint B’ field gun
Length: 12920 mm
Length with barrel: 2760 mm
The field gun is transported on ‘Kraz-255B’, ‘Kraz-260’ (6x6) trucks and AT-T, ATS, ATS-59, MT-T track transport vehicles.
Ammunition:
- OF-29 fragmentation shell (Weight 46 kg)
- OF-59 rocket-assisted projectile (to destroy targets at a range of 33.5 km)
- Nuclear 3VB6 shell (banned)
- cargo shells
- anti-tank and smoke shells

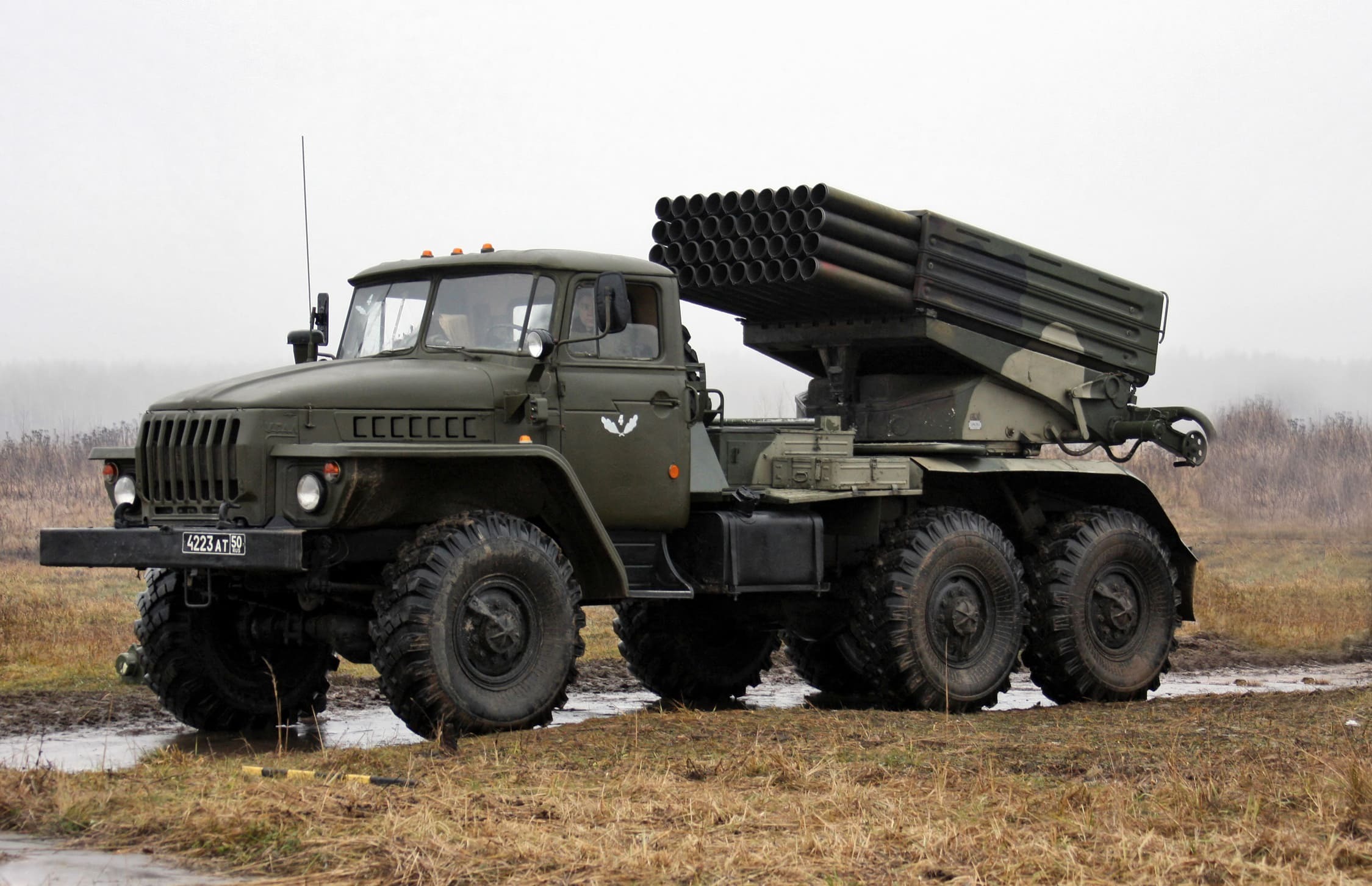

BM-21 ‘Grad’ multiple rocket launcher
Mass: 13.71 tonnes
Maximum speed: 75 km/h
Length: 7.35 m
Width: 2.40 m
Height: 3.09 m
Crew: 3
Rate of fire: 2 rounds/s
Operational range: 405 km
Sights: PG-1M panoramic telescope

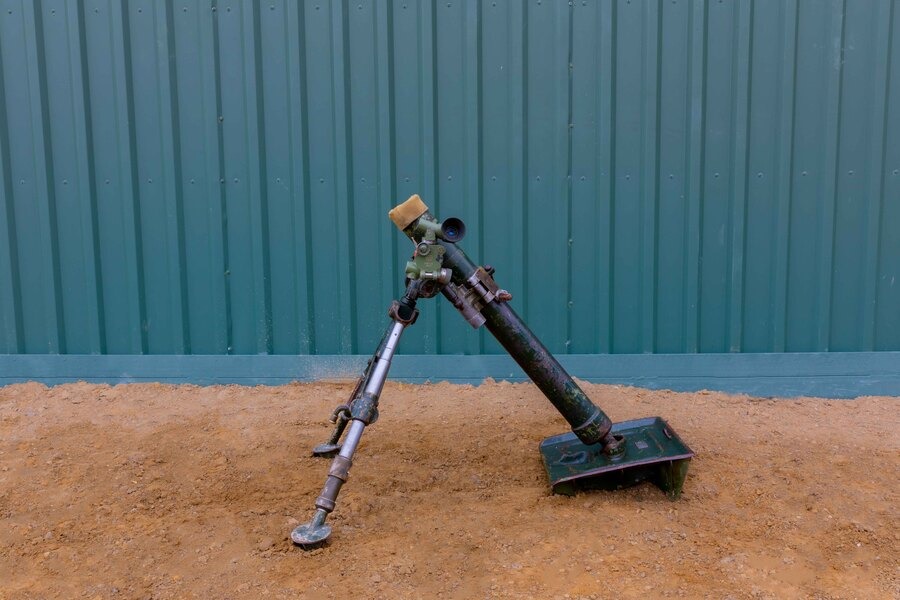

‘M57’ 60 mm mortar
Mass: 19,7 kg
Crew: 3
Calibre: 60 mm
Rate of fire: 25-30 rpm
Maximum firing range: 2537 m with mortar shell M73
Sights: NSB-1

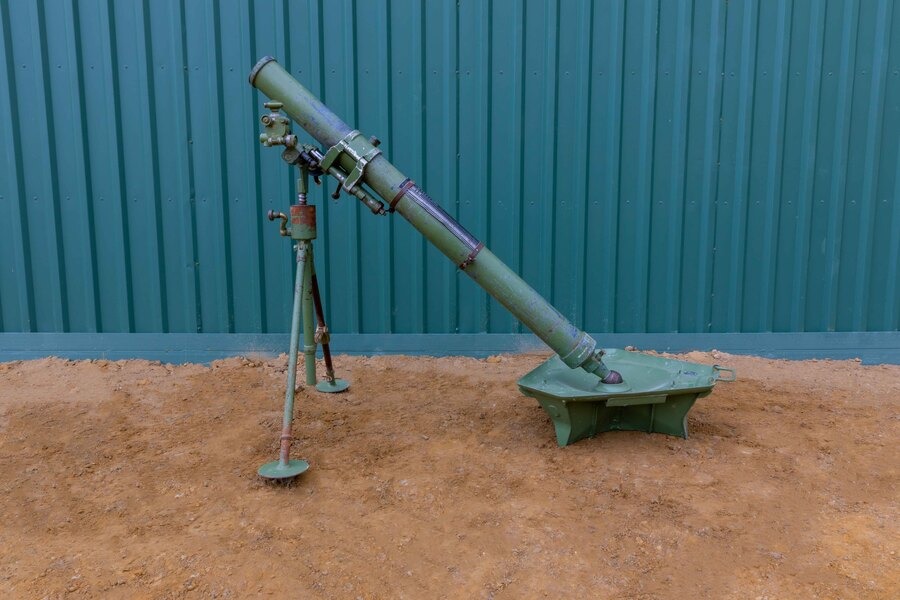

‘M69’ 82 mm mortar
Mass: 47,1 kg
Length: 1,324 mm
Crew: 4
Calibre: M69/M96: 82 mm, M69B: 81 mm
Elevation: 45°- 85°
Traverse: 5.6°
Rate of fire: 8-15 rpm sustained
Maximum firing range: 4943 m
Sights: NSB-3

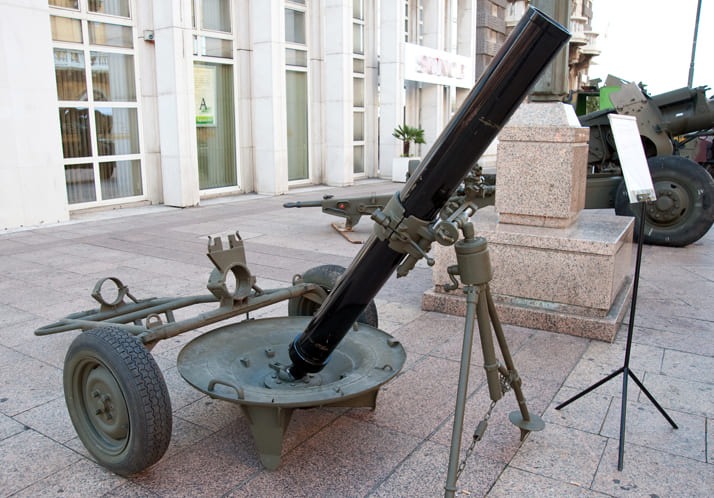

‘M75’ 120 mm mortar
Mass: 177 kg in firing position, 261 kg in transport
Crew: 5
Calibre: 120 mm
Rate of fire: 15 rpm
Maximum firing range: 9056 m with rocket-assisted ammunition

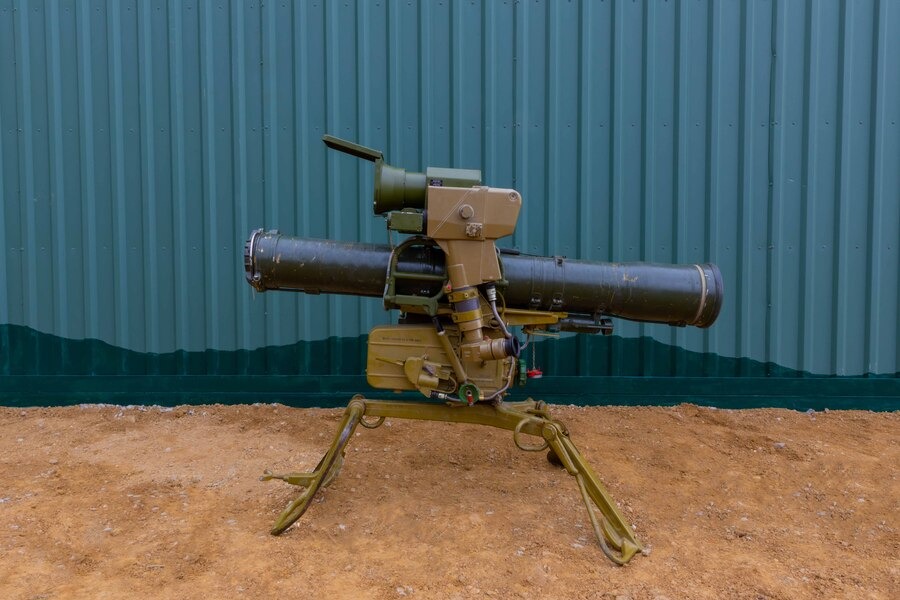

‘Fagot’ anti-tank missile system
Effective firing range: 70-2000 m
Rate of fire: 3 rounds/minute
Medium speed: 186 m/s
Maximum speed: 240 m/s
Calibre: 120 mm
Length: 863 mm/910 mm
Wingspan: 369 mm
Container dimensions:
- length: 1098 mm
- width: 150 mm
- height 205 mm
Missile weight:
- with launch tube 13 kg/11.3 kg
- without launch tube: 13.2 kg/11.5 kg
Warhead weight: 2.5 kg
Penetration: 400 mm/460-500 mm
Penetration under 60° angle: 200 mm/230 mm

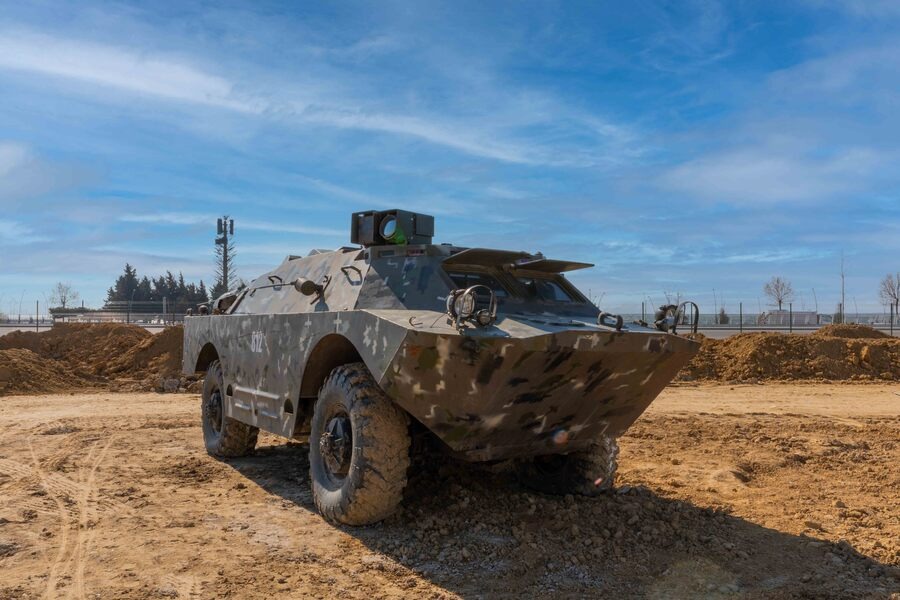

‘Konkurs’ anti-tank missile system
Guidance system: wire-guided, semi-automatic
Warhead: HEAT
Firing range: 75-4000 m, at night 3500 m
Penetration:
Under 60° angle: 250 mm
Under 90° angle: 560 mm
Flight speed: 208-250 m/s
Maximum destination flight time: 20 s
Warhead weight: 2.7 kg
Missile weight: 14.58 kg
Total weight with launcher: 25.3 kg
Weight of the launching post: 22 kg
Missile dimensions:
Calibre: 135 mm
Length: 1165 mm
Wingspan: 468 mm
Sights: 9Ş119M1.

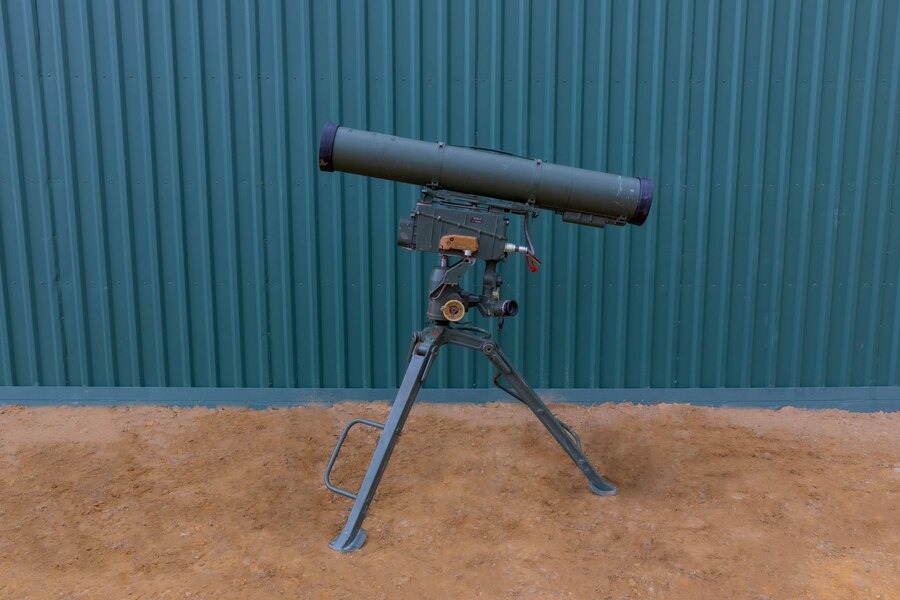

‘Kornet’ anti-tank missile system
Firing range: dah 100-5500 m. / night 100-3500 m
Missile weight: 26 kg
Mass with launch tube: 29 kg
Warhead weight: 7 kg
Warhead mass: 4.6 kg
1PN-79 ‘Metis-2’ sights mass: 11 kg
Weight of tripod 9P163M-1/firing unit: 26 kg
Transfer to a firing position: 1 minute
Preparation for a shot: 1-2 s.
Firing rate: 2-3 rpm
Reload of firing unit: 30 s
Aiming angles of the 9P163M-1/9P163M-2 firing unit:
Horizontal: 360/180°
Vertical: −5 ° to + 20 °/−10 ° to + 15 °
Missile calibre: 152 mm
Missile length: 1200 mm
Wingspan: 460 mm
Combat application temperature range: -50° С + 50° С
Application height range: 0-4500 m
Penetration: 1000-1200 mm
Crew: 2

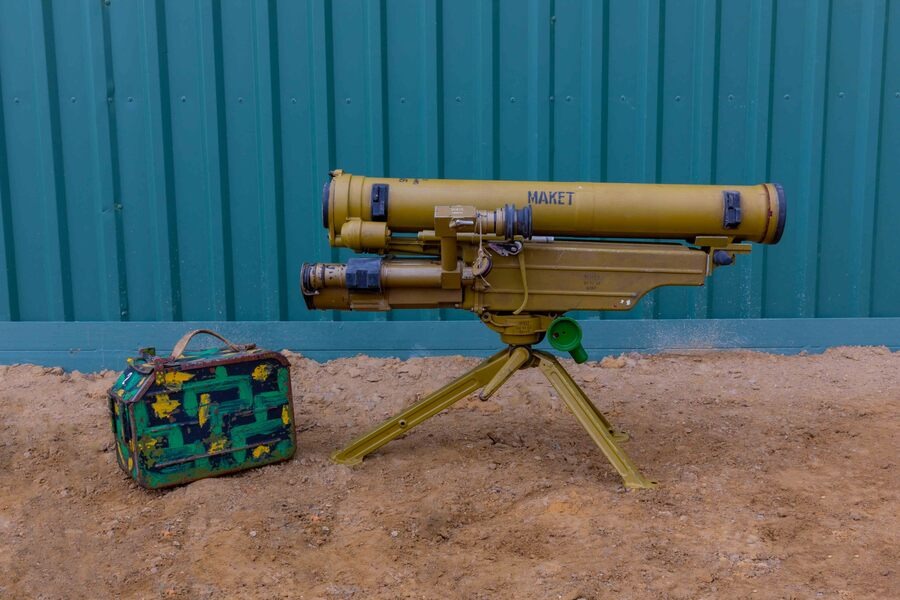

‘Metis’ anti-tank missile system
Mass: 13,8 kg
Length: 980 mm
Transfer to firing position: 15-20 seconds
Firing rate: 3-4 rpm
Metis-M parts:
- 9M131 (9M131F) ATGM;
- 9P151 launcher;
- 1PBN86-VI thermal sight.

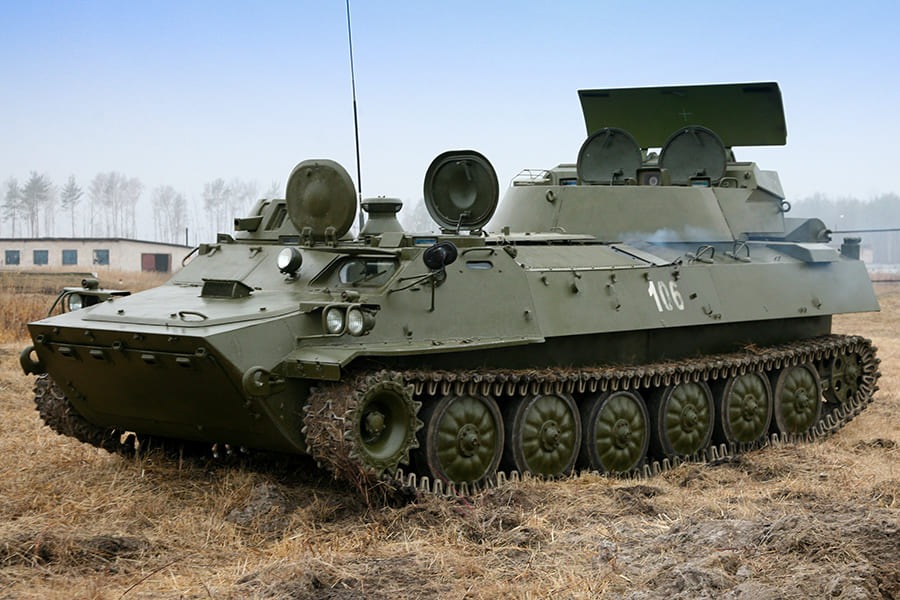

9P149 ‘Shturm-S’
Classification: Self-propelled anti-tank guided missile system
Combat load: 12.3 tonne
Crew: 2
Length: 6454 mm
Width: 2850 mm
Height: 1865 mm
Clearance: 395 mm
Armament:
- 9M114 ‘Shturm’ ATGM
- 9M120 ‘Ataka’ ATGM
Engine: YaMZ-238V

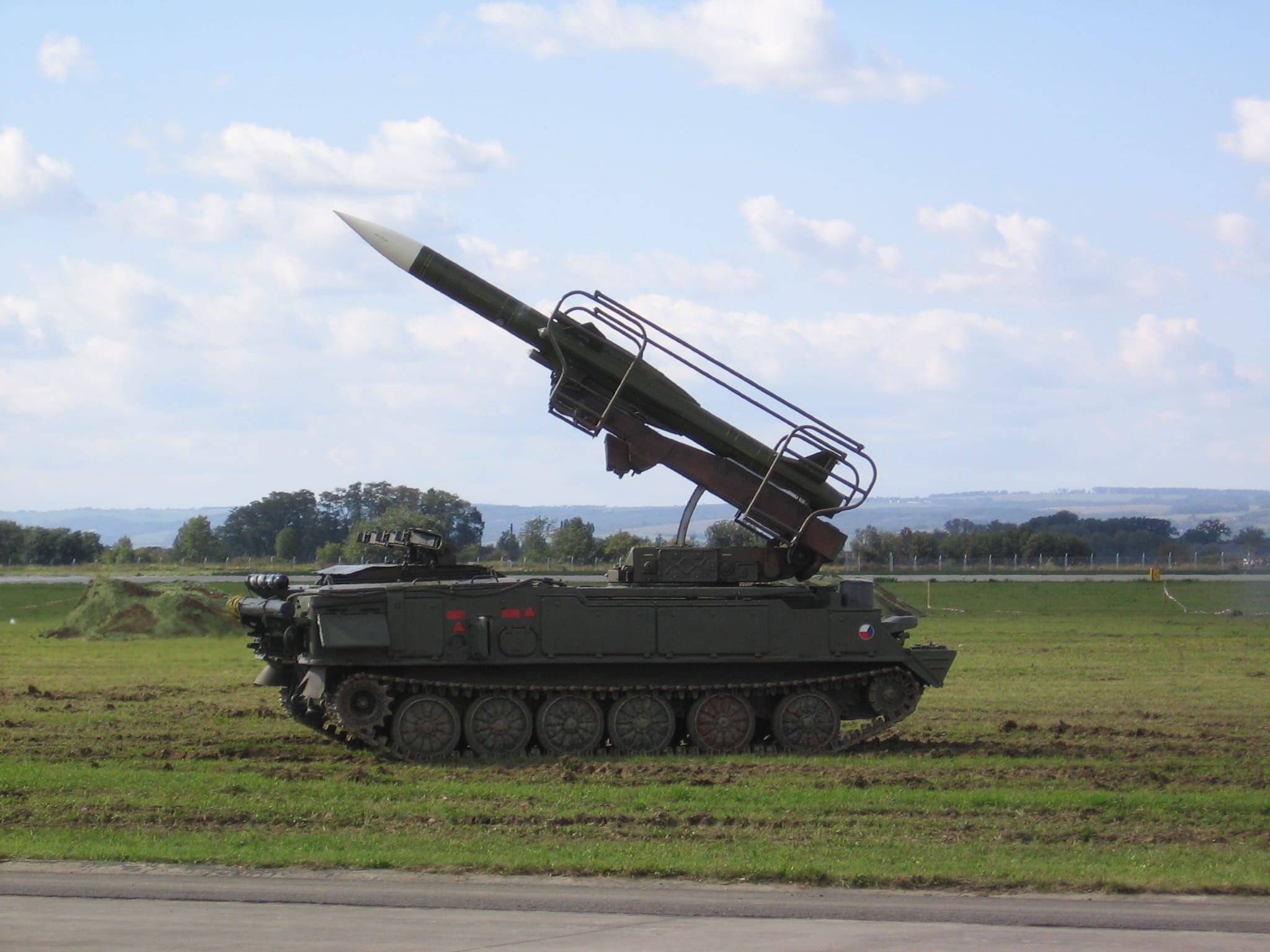

‘Kub’ surface-to-air missile system
‘Kub’ surface-to-air missile systems were produced from 1967 through 1983 and have 9 modifications. With a range of fire of 24 km, it is 12 km high. Each ‘Kub’ launcher vehicles carry 3 missiles.

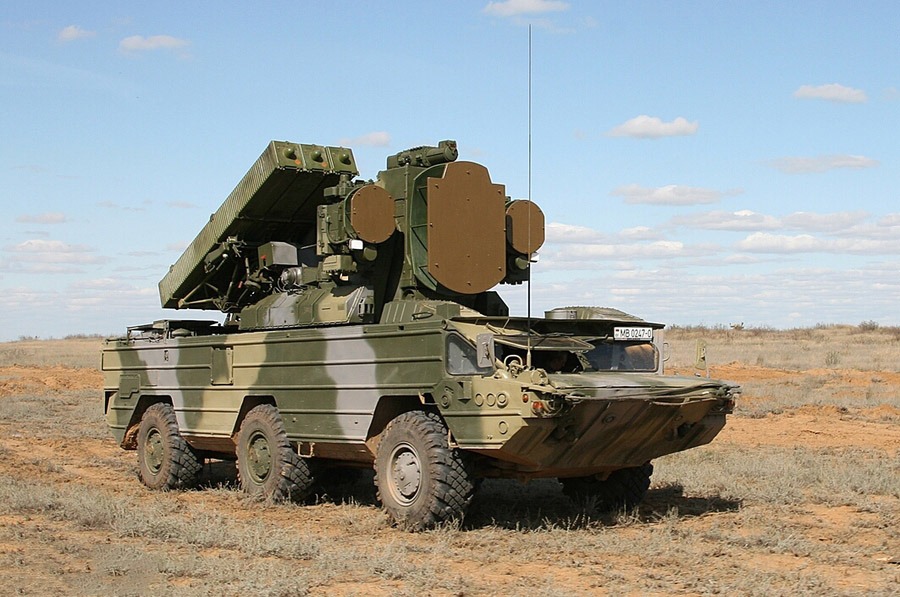

‘Osa’ surface-to-air missile system
Mass: 17.5 tonne
Speed: 80 km/h
Length: 9.14 m
Width: 2.75 m
Height: 4.20 m
‘Osa’ runs on a single-thrust solid fuel rocket motor. The firing range of the ‘SA-8a’ missiles is 10 km, and 12 km for the ‘SA-8b’ type. The starting mass of the missile is 130 kg, and the warhead is 19 kg. The maximum operating height is 5000, minimum of 25m. The launcher and control unit are mounted on a three-axle six-wheeled chassis (BAZ-5937). The vehicle is designed for rough terrains and can swim. The crew consists of 5 people. Its maximum speed is 80 km/h, 8 km/h while swimming. The main armaments are 6 9M33, 9M33M1, 9M33M2 and 9M33M3 missiles. The spare driving distance is 500 km.
‘Shilka’ anti-aircraft weapon system
Mass: 21 tonne
Length: 6535 mm
Width: 3125 mm
Height: 2.576-3.572 mm
Clearance: 0.4 m
Armour: 9.2–15 mm welded steel
Armament:
4 x 23 mm AZP-23 ‘Amur’ quad automatic anti-aircraft gun
Calibre: 23x152 mm
Firing rate: 3400-4000 rpm
Target destruction height: 0.5–2 km
Target destruction range: 0.2–2.5 km
Firing range: 3 km
Rounds: 2000
Shells: incendiary with tracer (БЗТ), HE-Frag (ОФЗ), HE incendiary fragmentation with tracer (ОФЗТ)

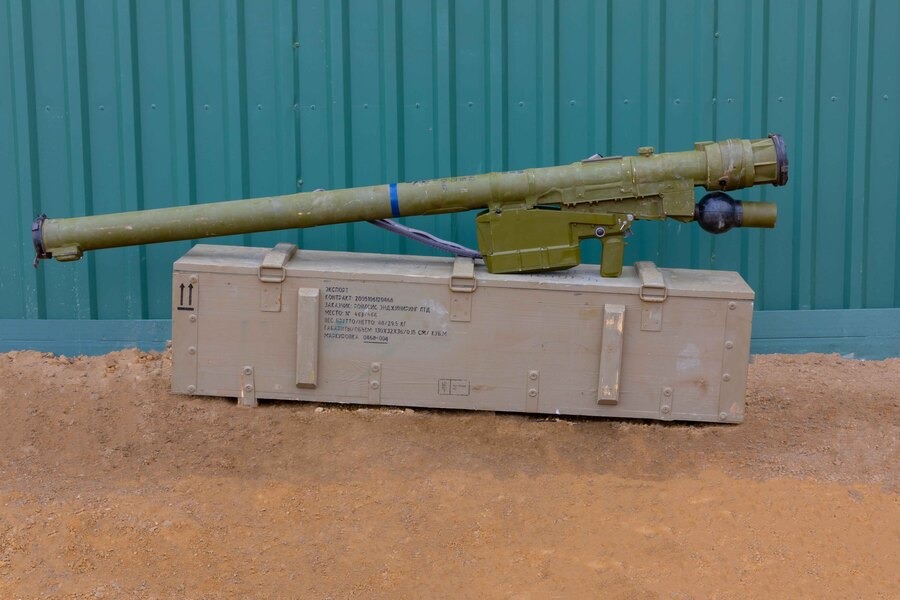

9K38 ‘Igla’ man-portable surface-to-air missile system
Calibre: 72 mm
Length: 1680 mm
Missile weight: 10.6 kg
Warhead weight: 1.3 kg
Warhead: Blast fragmentation
Guidance system: Infrared Homing (IRH)
Missile starting speed: 570 m/s
Flight ceiling: 3 km
Operational range: 6 km
Target speed: 320–360 m/s
Target destruction ceiling: 0.10–3.5 km
Target destruction range: 5 km
Power supply time is 6 seconds, power supply change time – 13 seconds.
Radar system: RPK-2M
Radar: 1RL33M2
Automatic target detection: 20 km
